LiveNoise Terminal with WiFi and Ethernet

LiveNoise Terminal
LiveNoise Terminal

Price List

LN2-1
£620.00 +VAT
LiveNoise Terminal
In stock

LN2-2
£1190.00 +VAT
LiveNoise Terminal Pack of 2
In stock

LN2-3
£1748.00 +VAT
LiveNoise Terminal Pack of 3
In stock

LN2-5
£2852.00 +VAT
LiveNoise Terminal Pack of 5
In stock

LN2-10
£5580.00 +VAT
LiveNoise Terminal Pack of 10
In stock
CU-USB
£22.00 +VAT
Power Supply for USB Powered Meters
In stock

The delivery price is calculated during checkout based on your location and the goods ordered. Our basic delivery prices are:

Delivery within United Kingdom: £12.00 +VAT

Delivery Service: Next working day*

* For products that are in stock and the order received by midday.

Some products go through a final configuration and calibration before being shipped. If the calibration labs are busy this can add up to two days on to the delivery schedule but guarantees a fresh calibration.

LN2-1
£620.00 +VAT
LiveNoise Terminal
In stock

LN2-3
£1748.00 +VAT
LiveNoise Terminal Pack of 3
In stock

Features

  • Connect to your existing SoundEar 3 unit
  • Network connection (WiFi or Wired Ethernet)
  • WiFi or Wired Ethernet connection
  • Long term data storage
  • Cloud based live data and reporting

Applications

  • Office and Call Centre Noise
  • Hospital Noise
  • Factory Noise
  • Hearing Protection

Overview

The LN2 LiveNoise Terminal is for customers who already have a SoundEar 3 or SoundEar 3 Industrial noise warning sign, or the SoundEar 3-320 noise processor. The LN2 module is added to your existing SoundEar 3 units to provide data logging, network connection and reporting through our cloud server using your web browser.

A system can consist of one or more LN2 enabled noise monitors. They connect to your local area network using either WiFi or a wired Ethernet connection.

The LiveNoise Terminal takes the noise measurements from the SoundEar 3, stores them, and sends them to our cloud server. It communicates continuously with the server to provide real-time noise levels, long-term noise measurements and high-noise alarms. You can use a web browser to access your LiveNoise Account to view these live levels or to generate daily, weekly or monthly reports.

Mounting

The Noise Warning Sign can be mounted on a wall using a single screw. The LiveNoise Terminal is mounted close by using two screws or it can just sit on a shelf or other suitable surface.

If a more secure mounting method is needed or you want to angle the SoundEar noise sign (not included) away from the wall then an adjustable VESA mount is available. An extra security bracket is also available for the LiveNoise Terminal. Please contact us for more information.

Connection & Power

A standard USB cable (included) connects the LiveNoise Terminal to the Noise Warning Sign. The system requires 5V DC, which is provided by the power adapter that is included.

Wall Mounting

mounting the livenoise terminal

The LiveNoise Terminal can be mounted on a wall using two screws, or it can lay flat on a shelf or desk.

connected to noise warning sign

A typical installation with a LiveNoise Terminal connected to a SoundEar 3 Noise Warning Sign. The SoundEar 3 is not included.

For greater security a VESA mount option is also available to mount the SoundEar 3.

Network Connection - WiFi or Wired Ethernet

The LiveNoise Terminal communicates with our cloud server over your existing network. It sends the noise measurements every minute so you can produce up to date reports. If anybody on the account is viewing live data then it also sends the sound levels every second. It uses a data efficient method so the bandwidth use is minimal. You won't notice these units on your network.

As the measurements are on a cloud server there is no software to install on your computer. You can access the live sound levels and the long term reports from anywhere using a web browser.

Wireless or Wired?

If a reliable WiFi signal is available then all the noise monitor needs is the network name and password to connect up. If you prefer a wired approach then connection can be made via an Ethernet connection (RJ45).

Viewing Live Sound Levels

To view the live sound levels from any connected noise monitors you use your web browser to log in to your LiveNoise account.

You will be presented with the sound level at each location, updating every second and displayed as numbers, charts or a mixture of the two.

The background is a simple image (JPG format), which you can upload to your account. It can be a picture of the location, floor plan, satellite image, whatever you choose. Alternatively, you can ignore the background and just have the sound level or chart as a large, full-screen display.

Warnings and Alarms

If you have alarm trigger levels set up then the chart or numbers will indicate a warning level in yellow and an alarm level in red. If the level stays above the alarm level for the preset period of time then the window will flash red to attract attention.

Noise Reports

Each remote noise monitor calculates the usual noise parameters over periods of 5, 10, 15, 30 and 60 minutes. These measurements are sent to the cloud server as soon as they are available so you can create noise reports using a web browser.

Your noise reports can be daily, weekly, monthly or over any custom period you choose. The reports show the sound levels in a chart or in a table.

Report Parameters

The reports include many parameters, measured with both "A" and "C" frequency weightings and, where applicable, Fast and Slow time response. This includes the Leq (average sound level), Lmin and Lmax, as well as the statistical parameters L5, L10, L50, L90, L95 and L99. The charts also indicate the number of alarms detected in each period.

Report Generation

To generate a report you select which noise monitors you want to include, the time period you want to see (daily, weekly, monthly or custom) and the measurement period to use (5, 10, 15, 30 or 60 minutes). Your choices are remembered so you don't have to select everything each time.

You can leave the report on-screen and it will update automatically whenever new measurements are available.

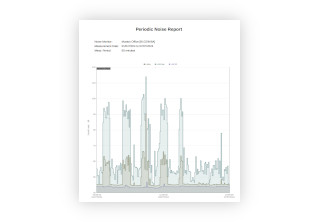

Exporting Reports

The reports you generate in your browser can be exported to PDF or CSV files. A PDF export is useful for printing, emailing or just for your records. The CSV export produces a table of results that can be imported to a spreadsheet or other similar program.

Technical Specifications

USB PortFor USB memory stick configuration
Ethernet PortRJ45 socket
Internal Memory16 GB for up to 3 years storage
Dimensions70 x 88 x 29 mm, 2.8" x 3.5" x 1.2"
Power5 VDC, max 12W (power adapter included)

Dimensions

livenoise terminal dimensions
Noise Data Logger Dimensions
